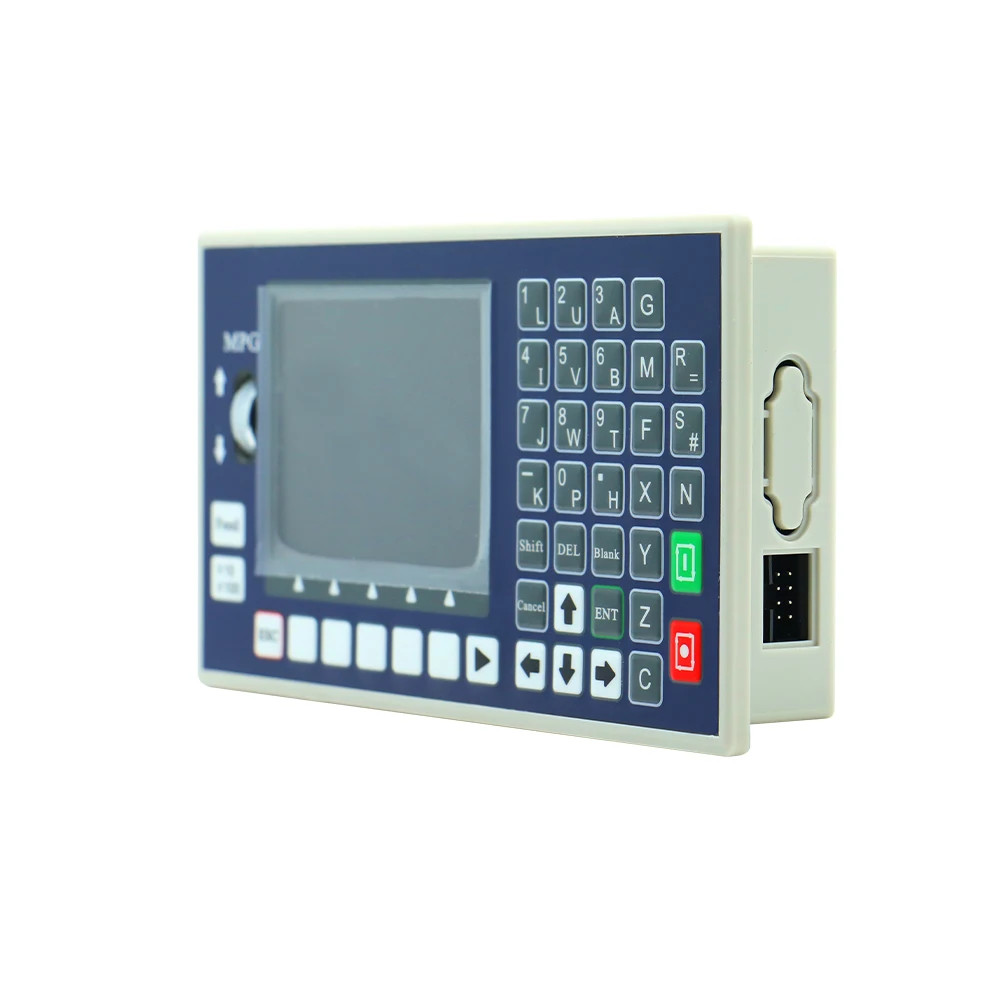

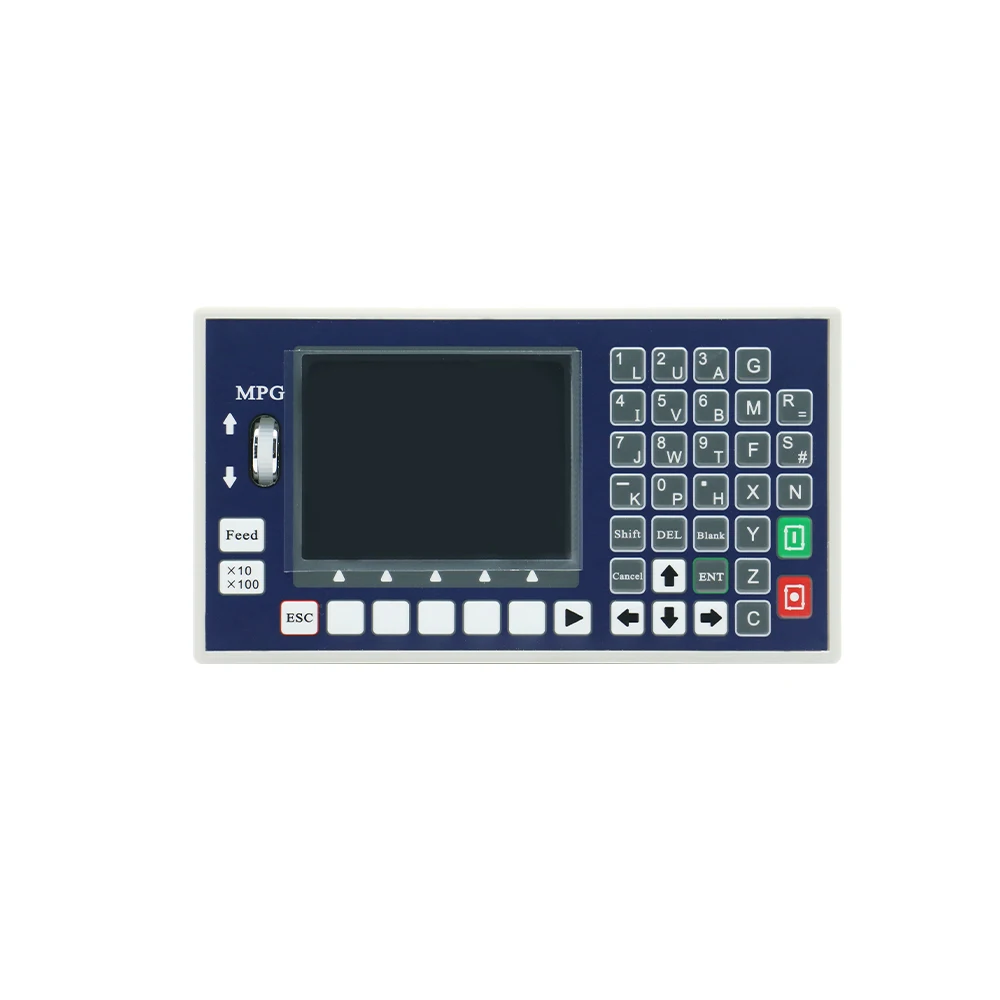

HLTNC TC55 Stepper Servo Motor Motion Controller 1-4 Axis Numerical Control System G/M Code 9000mm/min 128M RAM for Milling
$89.10
Description
Additional information
| Memory | 128 |
|---|---|
| place of origin | Zhejiang, China |
| application | Milling Machine |
| warranty | Other |
| Weight kg | 1.5 |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| brand name | HLTNC |

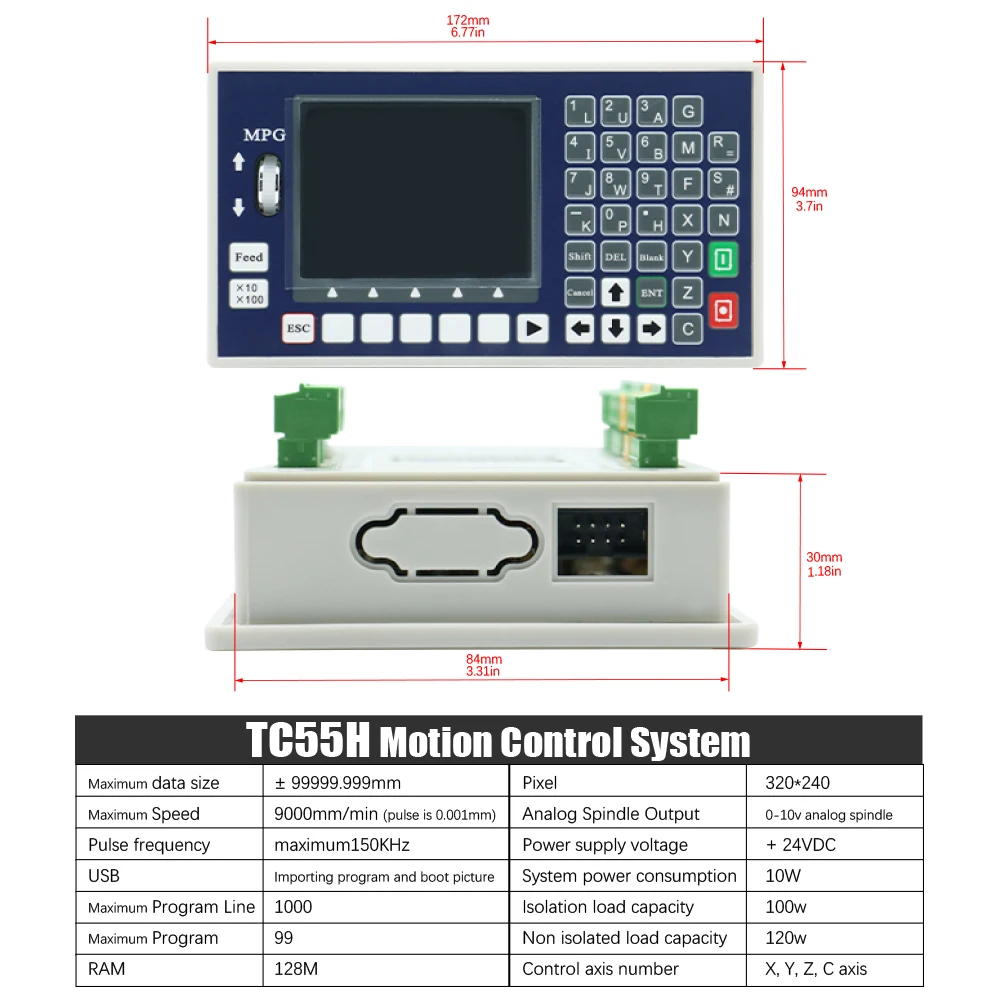

| dimensionlwh | 172*94*30MM(6.77*3.70*1.18in) |
| Product Name | Numerical control controller |
| Code | G code and M code |
| Function | Automatic conversion of distance, Angle and number of turns |
| Pulse frequencyPeak | 150KHz |
| Number of axes that can be controlled | 1-4 |

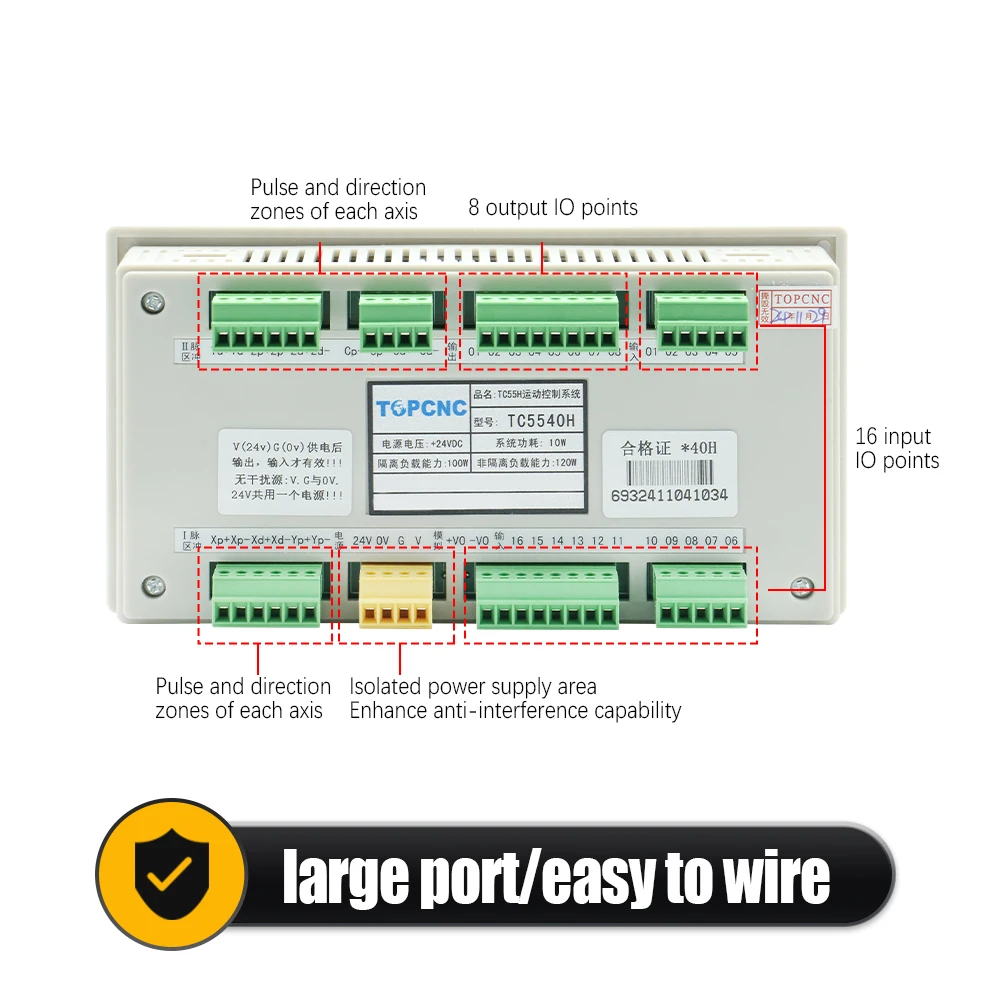

| Output port | 8 |
| Input port | 16 |
| Maximum Data Unit | 0.001mm |
| Maximun Speed | 9000mm/min(pulse is 0.001mm) |
| RAM | 128M |
